The Prime SD1484 is one of the newer CPU cooler offering by Xigmatek. The Prime SD1484 implements the Heat-pipe Direct Touch technology and promotes a new type of fan blade design that apparently allows more air to be pushed at a quieter rate. With the already saturated CPU air cooling market, we have seen fantastic performers such as the Noctua NH-D14 and Thermalright Silver Arrow dominate in terms of cooling performance so much to the point that some people believe that such performance is the limit to air cooling. How well exactly the Prime performs? Read on for the full review.
[toc]
Specifications
| Product Name | Prime SD1484 | |
| Product Number | CAC-SYHH4-U01 | |
| Dimension | 142(W) x 60(D) x 159(H) mm | |
| Heat Sink | Base Material | H.D.T (Heat-pipes Direct Touch) |
| Fin Material | Aluminium Alloy | |
| Heat-pipe | SPEC | Φ8mm |
| Quantity | 4 pcs | |
| Fan | Dimension | 140(W) x 140(H) x 25(D) mm |
| Voltage Rating | 12V | |
| Starting Voltage | 9V | |
| Speed | 800~1200 R.P.M | |
| Bearing Type | Sleeve Bearing(with copper axle) | |
| Air Flow | 90.3 CFM (Max.) | |
| Air Pressure | 1.08 mmH2O (Max.) | |
| Life Expectance | 40,000 hrs | |
| Noise Level | 18dBA (Max.) | |
| Connector | 4 pin with PWM | |
| Weight | 710g (w/o fan) | |
| Thermal Resistance | 0.14 ℃/W | |
The Prime is currently priced at roughly around $64.99 USD (according to newegg) and is available at all your major online retailers I believe. In Singapore, the SRP is $79 SGD and is available at most of your local hardware retailers. For more details of the fan that is provided with the CPU cooler, read my review of the Xigmatek XAF 140mm Fan Series. They are pretty good fans in the tests I’ve done. This cooler supports all Intel LGA 775/1155/1156/1366 sockets as well as AMD AM2/AM3 sockets.
Video Unboxing & Review
Like all my latest few reviews, I’m leaning more towards an approach of combining both videos and written text together hopefully to provide a more entertaining and informative experience. So yeah if you’re more into hearing someone speaking to you rather than reading, go ahead and watch the video. Oh and of course you can watch it for the unboxing too.
The Xigmatek Prime SD1484 CPU Cooler

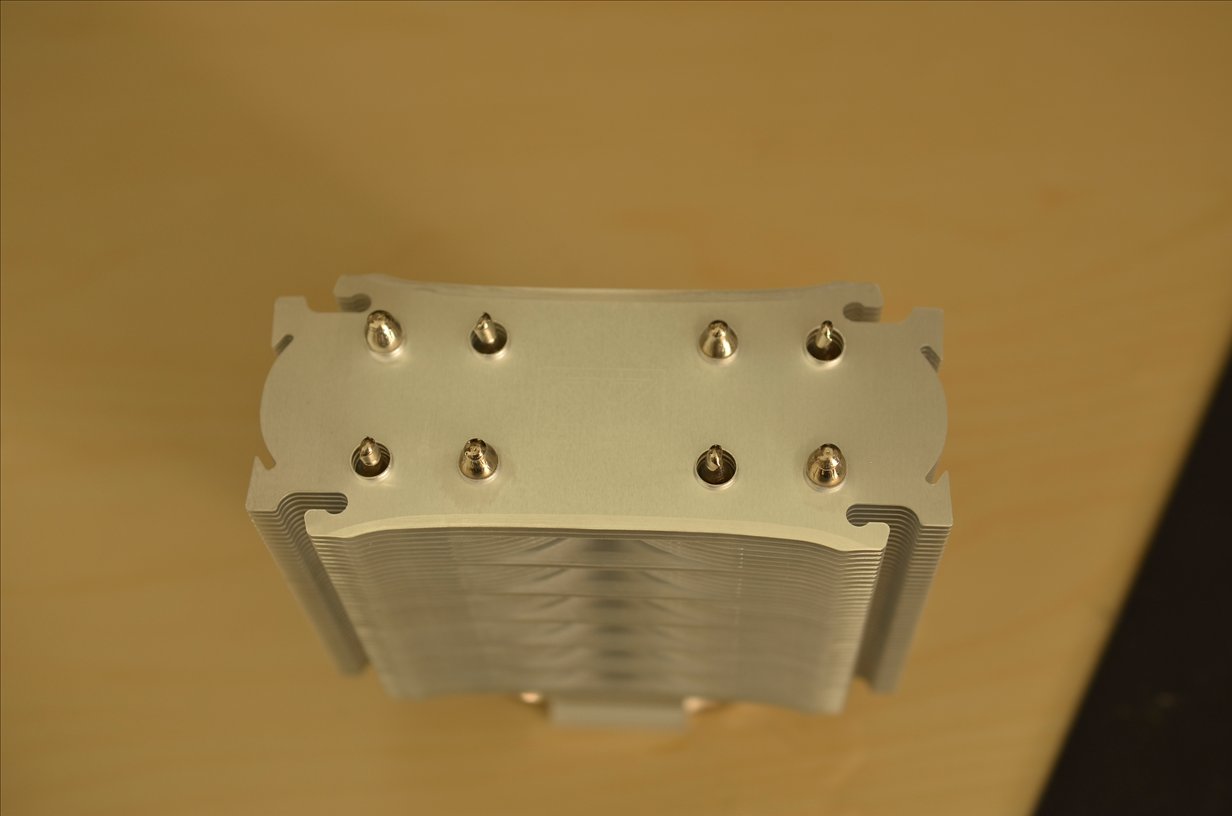

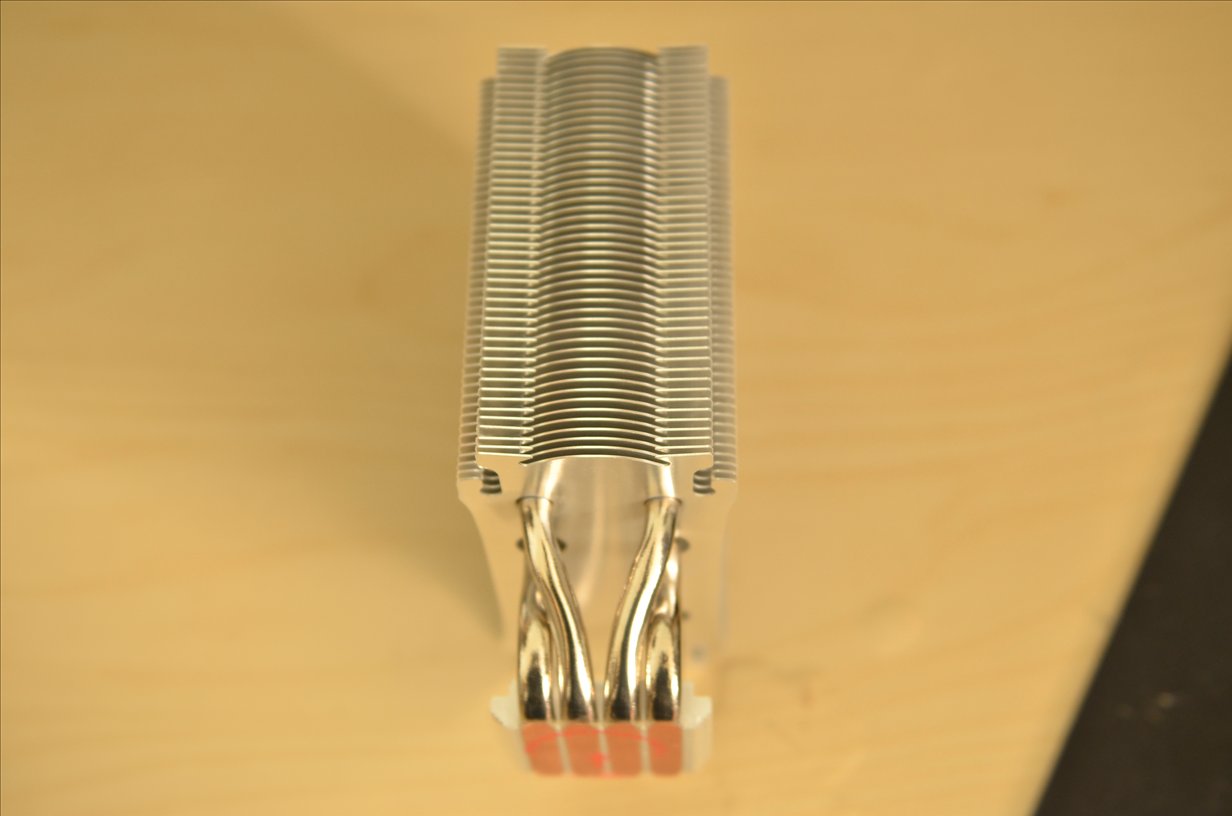

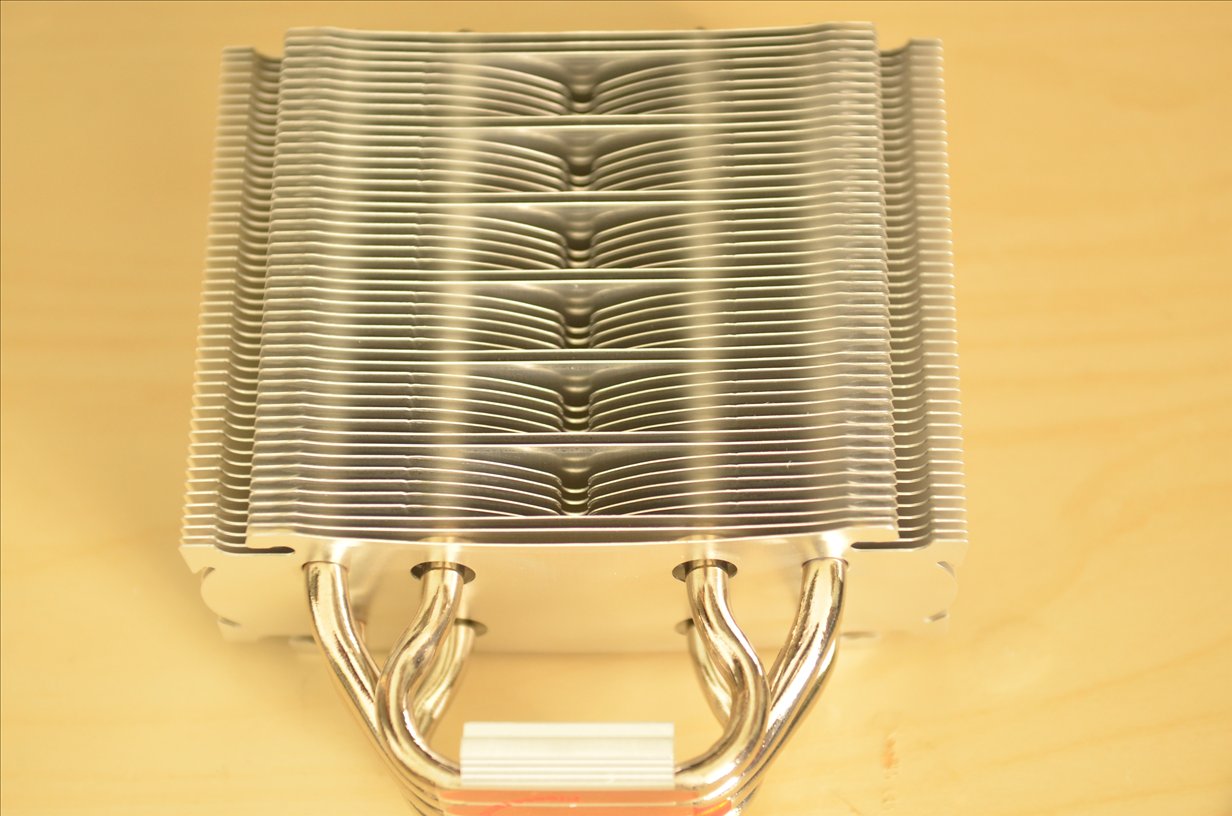

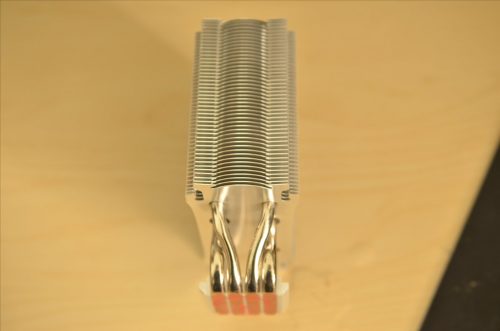

Here are some different angled shots of the Prime for your viewing pleasure:

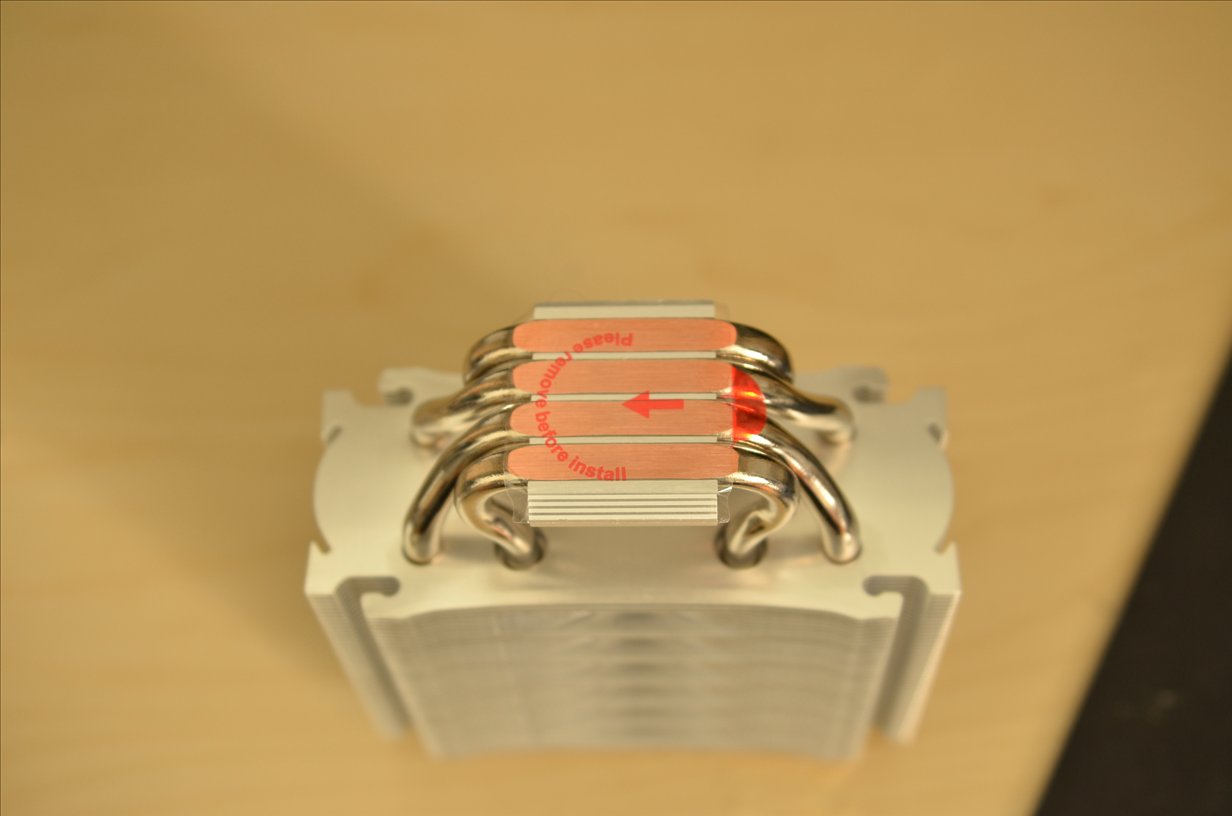

And here is the base of the Prime which you will see the 4 x 8mm heatpipes and the heat-pipe direct touch concept whereby the heatpipes will come in direct contact with the CPU chip itself:
Installation of the Xigmatek Prime SD1484
If you’re interested, I did a video about the mounting mechanism. Just a rough overview of how its done:

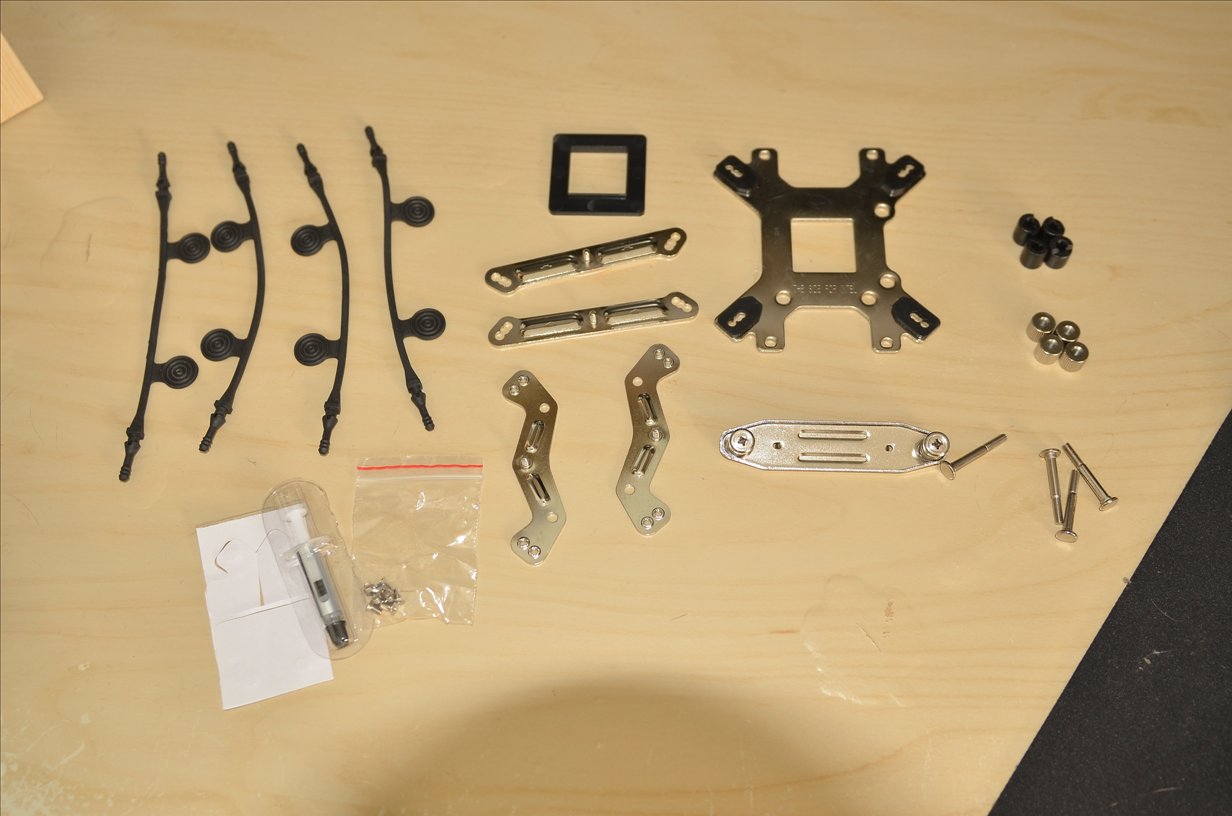

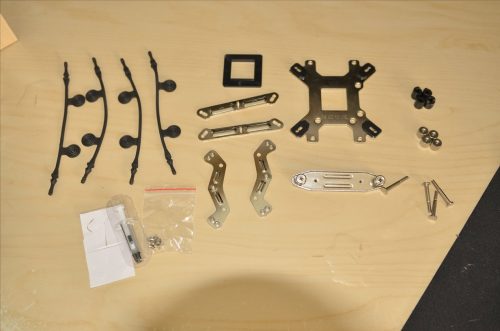

The accessories provided with the Prime are pictured below:
The backing plate is for both Intel and AMD and there are labels on the plate itself that tells you which side is for which platform. For my Intel 1366 system, these are the following procedures taken to install the Prime SD1484:

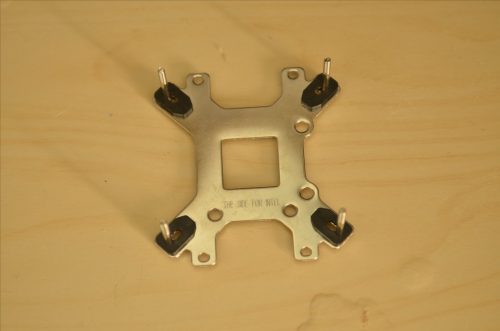

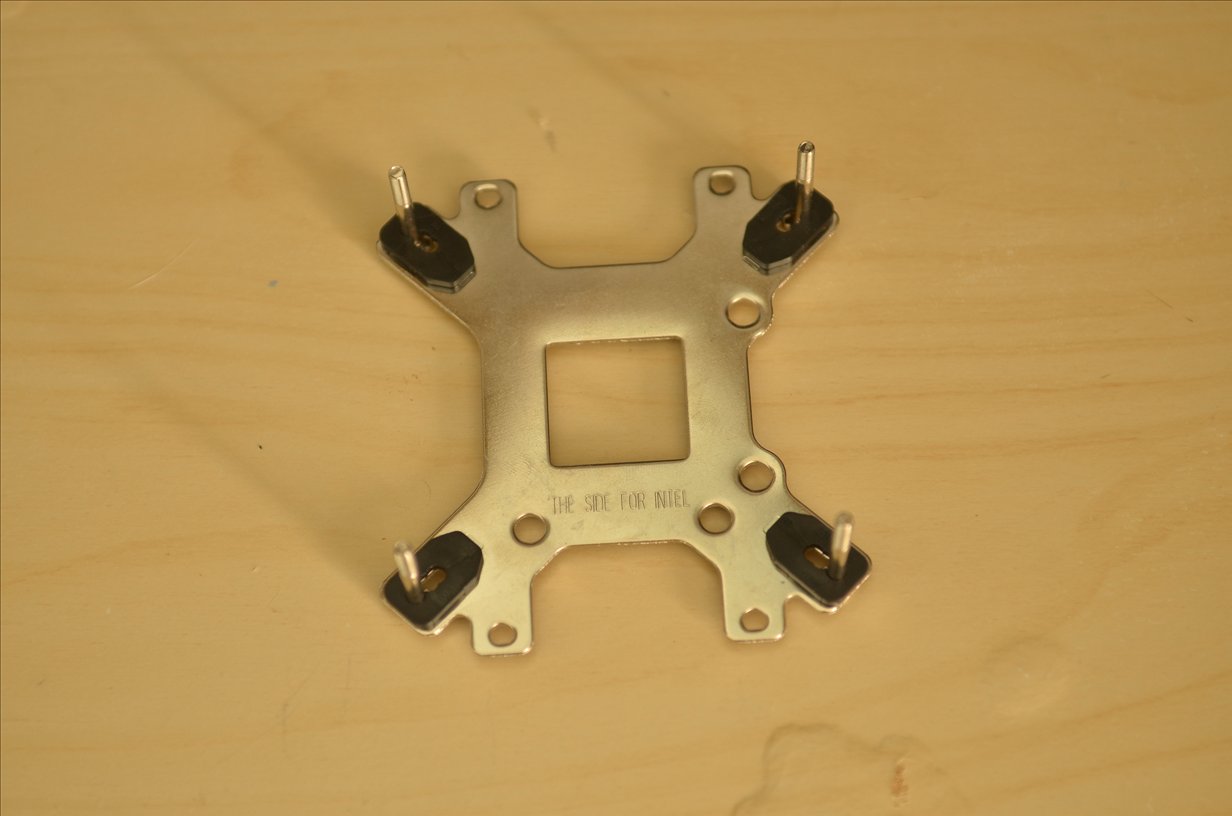

Firstly, you have to insert the screws into the correct holes and position according to your system:

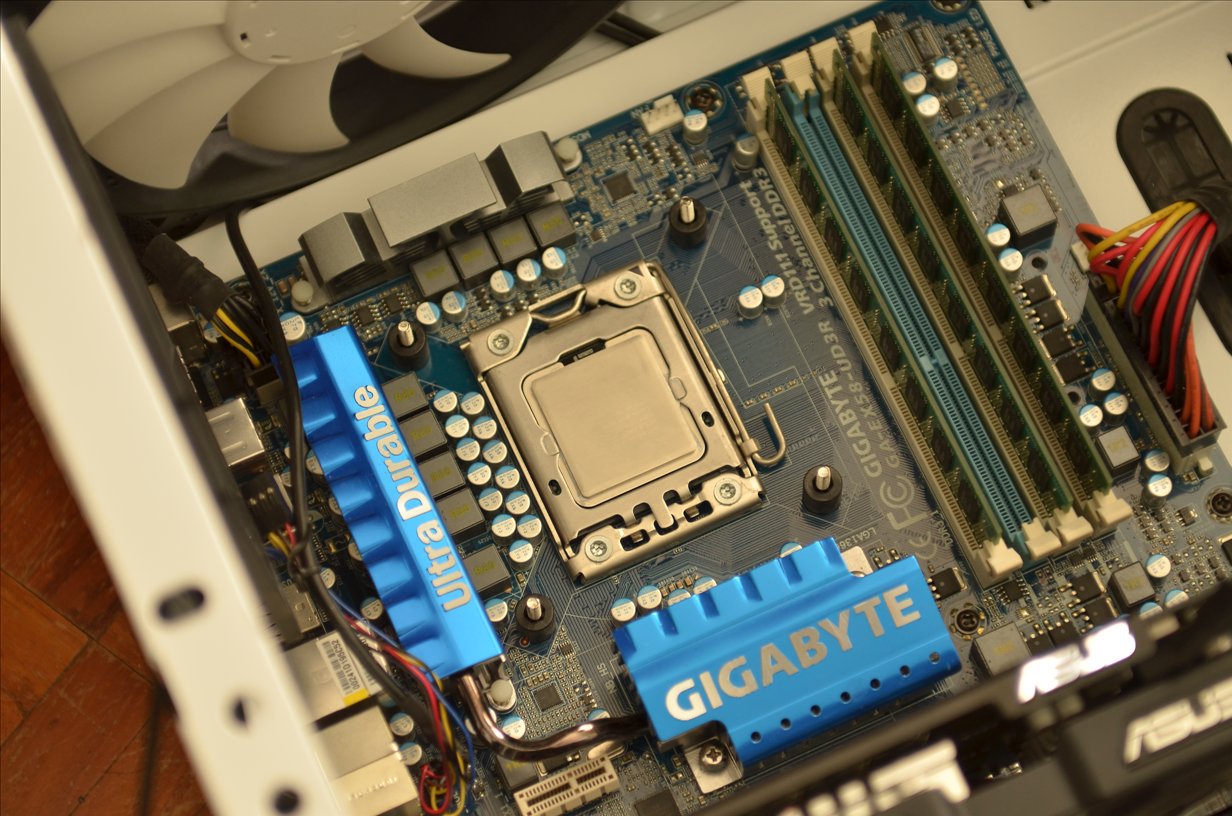

You then insert it to the back of your motherboard with the screws protruding out. You then secure the backing plate by slipping in the stand offs.

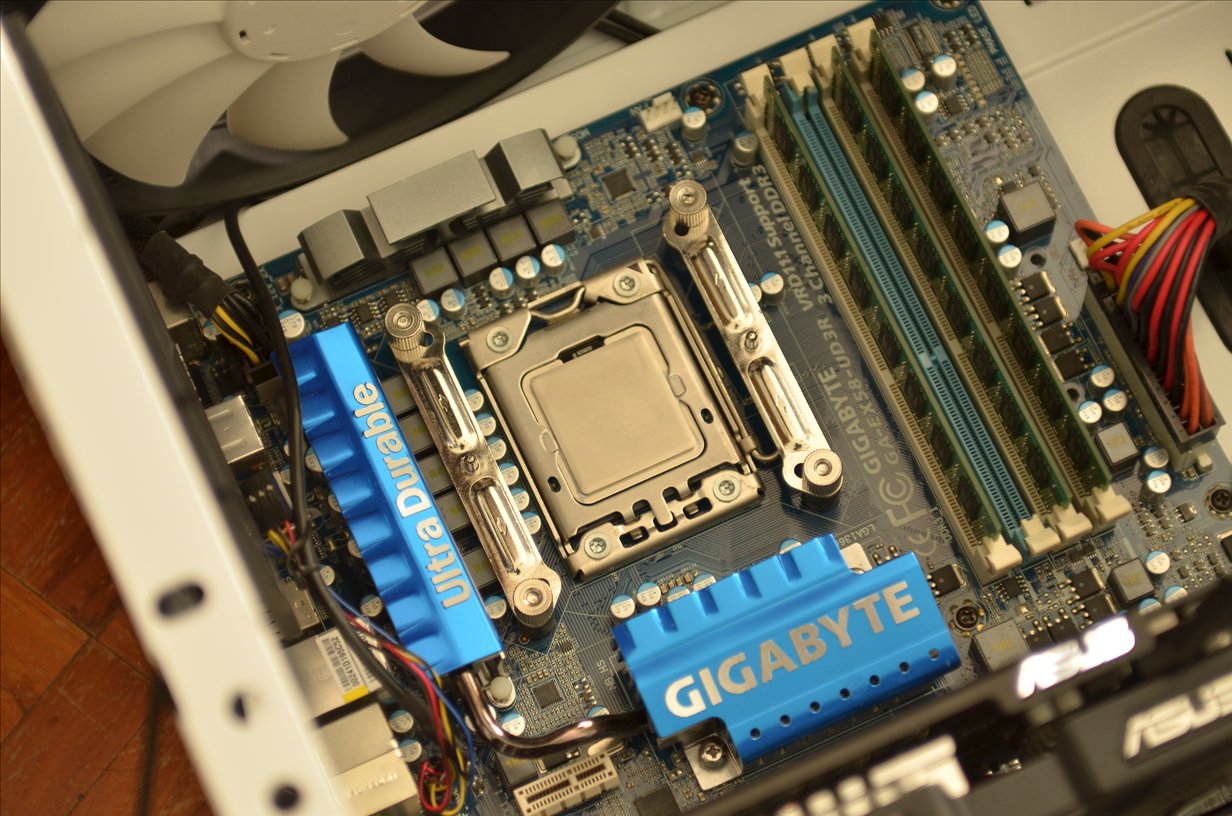

The lower half of the mounting system is then placed and secured by tightening the nuts.

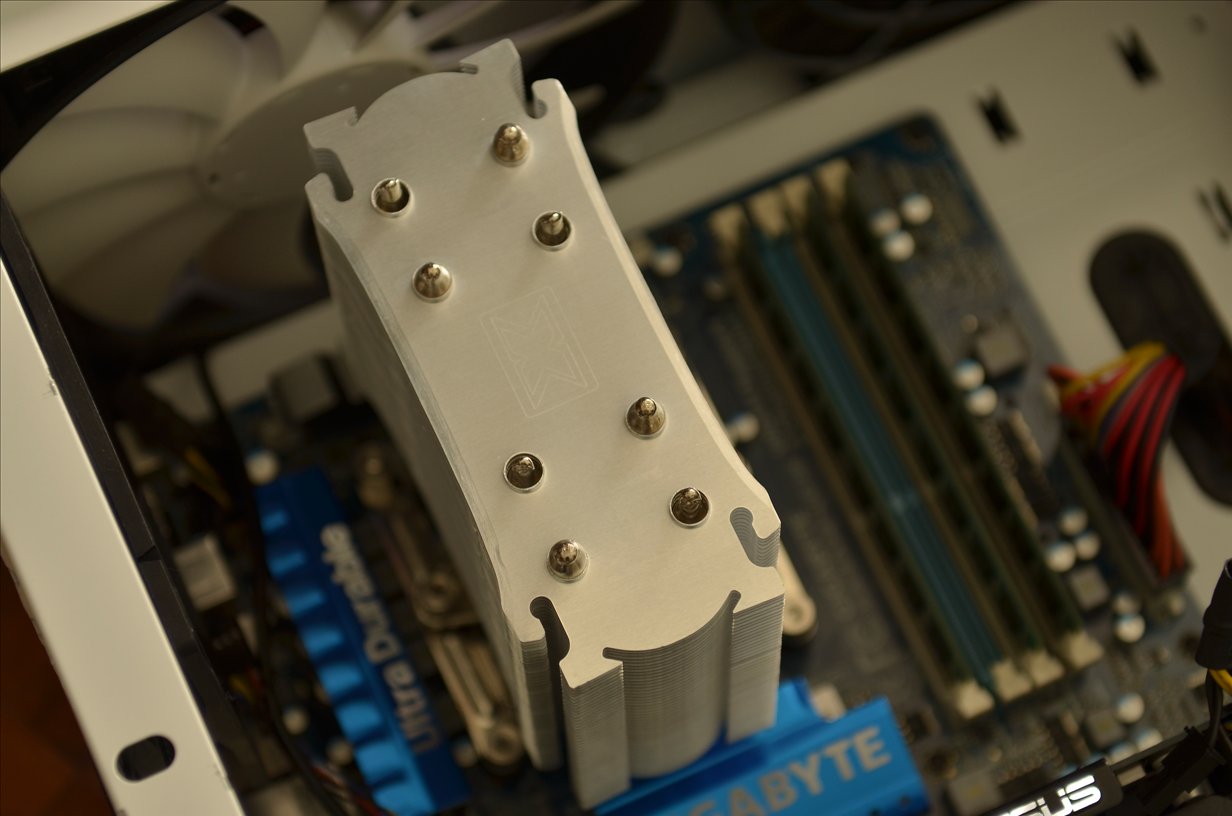

You then apply your thermal compound and the cooler is placed on the CPU. The cross bar then goes across the heatsink and is secured into the lower half of the mounting system by tightening the screws at both ends of the cross bow.

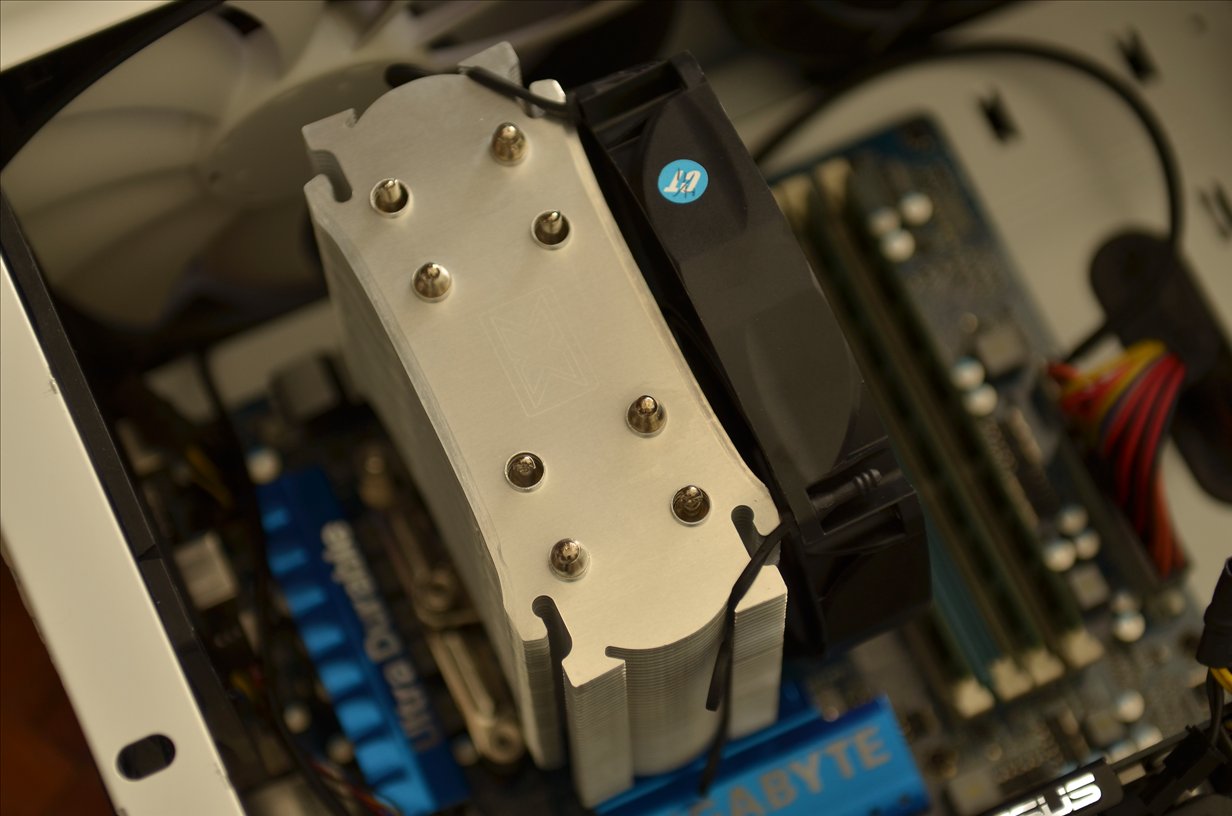

Using the rubber mounts, you then hook on the fan.
Overall the installation process was simple and easy to perform. The rubber fan mounts work surprisingly well. However, working within the case proved to be quite a difficult task especially when mounting a push pull config. There simply wasn’t enough room but with some improvisations it still can be done. From using the rubber fan mounts, I felt that they were surprisingly well built and probably could last for quite some time. It should be able to take the heat from the heatsink without the rubber degrading quickly.
Test System and Methodology
Here are the specifications of the test system:
| Component | Model |
| Processor | Intel i7 920 C0 @ Stock Settings/OC 3.6GHz @ 1.2v |
| Motherboard | Gigabyte EX58-UD3R Rev 1.0 |
| Memory | 3 x 2GB Kingston DDR3 1333mhz |
| Graphics Card | ASUS GTX 560 TI Direct CU II |
| Hard Drive(s) | 640gb Western Digital Caviar Black |
| Power Supply | FSP Aurum CM 650w |
| Chassis | NZXT Phantom Configuration as follows:Front: 1 x 140mm fan (Intake) Side: 2 x 120mm fan (Intake) Rear: 1 x 120mm fan (Exhaust) Bottom: 1 x 140mm fan (Intake) Top: 1 x 200mm fan (Intake) |
| Operating System | Windows 7 Ultimate x64 |
Â
Testing Method
Testing procedures are as follow. The system is left idle at the desktop for roughly 20 minutes and temperatures are recorded (idle temps). I will then run it at full load with Prime95 small FFT test for 30 minutes and the temperature will be recorded (load temps). The room temperature is recorded using a room thermometer and is kept as constant as far possible throughout the running of the test. There are two levels tested mainly the stock settings and a mild overclock of 3.6GHz. All temps recorded are with Real Temp. The temperature reading from all 4 cores are recorded and averaged. This will then be subtracted by the ambience temperature to give the delta temperatures as seen in the graph below.
The coolers tested are (pardon the lack of comparisons as I am new in hardware reviewing scene):
NZXT Havik 140
Xigmatek Prime SD1484
Prolimatech Megahalems Rev B.
Each of the coolers are tested in both a push and push-pull configuration. The fans used for each coolers are kept constant namely the Xigmatek XAF 140mm fans.
Test Results
Performance Evaluation
The performance of the Prime is well, average for its price I guess. In stock settings the Megahalems shine tremendously but considering the price you pay for and the lack of fans it provide, it might just be in a different market as compared to the Prime. As for comparing the Prime to the Havik 140, they certainly do have very similar performances. This comes with no surprise with both heatsinks so seemingly similar (and yes the stock fans provided for the Havik 140 are the Xigmatek XAF fan series). Nevertheless, it does seem to perform relatively well just losing out to the Megalems by roughly 2°C when OCed. By investing in a push-pull configuration, you can certainly shave off a few degree Celsius.
Conclusion
The Xigmatek Prime SD1484 does what most CPU coolers in the market already do. Perhaps what stands out most is how well the stock fans perform both in terms of being a heatsink fan as well as the quiet operation at which it does its job. The very problem however lies in the fact that with the cooler so similar if not almost identical with NZXT’s first ever CPU cooler, Havik 140, the price point of $64.99 [$79 SGD] (Prime) compared to $67.99 [$98 SGD] (Havik 140) does not seem to be justified. In fact, the Havik 140 comes with 2 fans as compared to the 1 given by Xigmatek.
Overall, the Xigmatek Prime SD1484 is a decent enough CPU cooler by itself. However, considering all the other options and competition lying around, it sadly falls short both in terms of price and performance to its competitors.
Pros
- Great stock fan provided. Basically the Xigmatek XAF series of fans are fantastic.
- Easy installation both mounting the heatsink and the fans
- Stock fans are PWM fans.
Neutral
- Stock fan not sleeved. Why Xigmatek? Why?
Cons
- Many other similar priced coolers that perform almost similar if not better.
